RESIDENTIAL CAR LIFT SYSTEM
Case Study
CAR LIFT - PROJECT OVERVIEW:

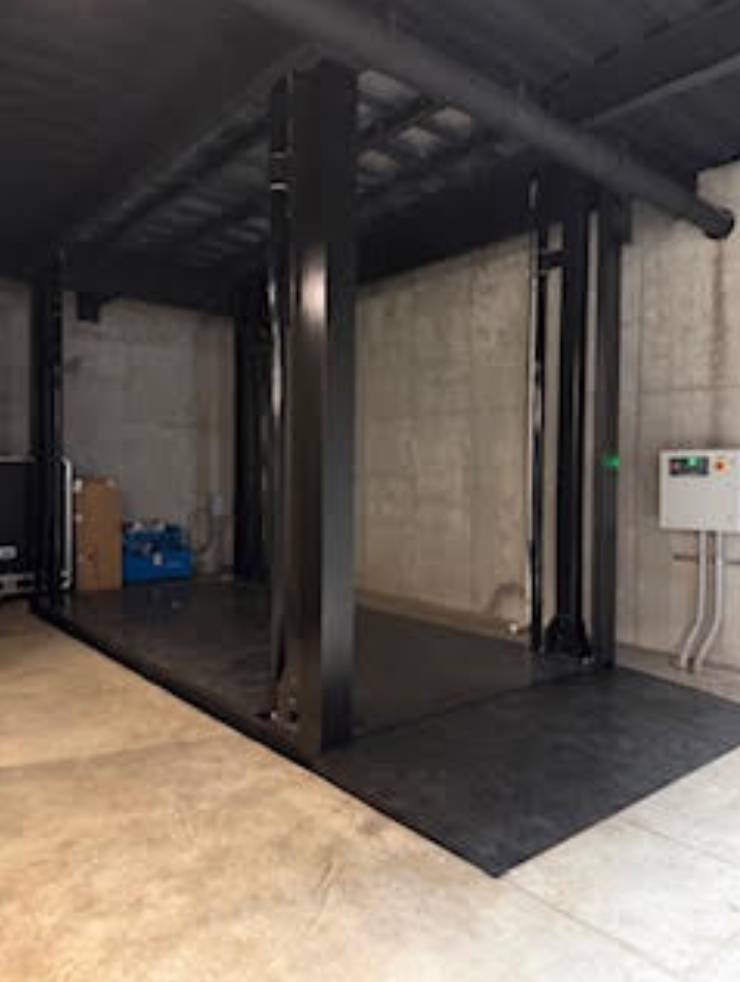

A private luxury residence in Winter Park, Florida required a heavy-duty car lift system to transfer automobiles from grade level to a large underground garage. The system needed to provide substantial lifting capacity while maintaining the ability to support a second vehicle on the upper canopy platform.
Installed outdoors in Florida’s demanding climate, the car lift also required a water management solution to prevent rain intrusion into the garage below.
Carousel-USA engineered and delivered a fully customized 4PL157 vehicle lift system. I was designed to meet structural, hydraulic, environmental, and scheduling demands — on time and without compromise.
A private luxury residence in Winter Park required a heavy-duty vehicle lift system to transfer automobiles from grade level to a large underground garage. The system needed to provide substantial lifting capacity while maintaining the ability to support a second vehicle on the upper canopy platform.
Installed outdoors in Florida’s demanding climate, the lift also required a water management solution to prevent rain intrusion into the garage below.
Carousel-USA engineered and delivered a fully customized 4PL157 system designed to meet structural, hydraulic, environmental, and scheduling demands — on time and without compromise.
THE CHALLENGE: HIGH-CAPACITY DUAL CAR LIFT SYSTEM REQUIREMENT
The homeowner required:
• 12,000 LB total lifting capacity
• Ability to keep a vehicle on the top canopy platform during lift operation • Smooth, controlled travel with commercial-grade reliability
This required precise structural sizing and a hydraulic system capable of safely handling static and dynamic loads — including unbalanced conditions.

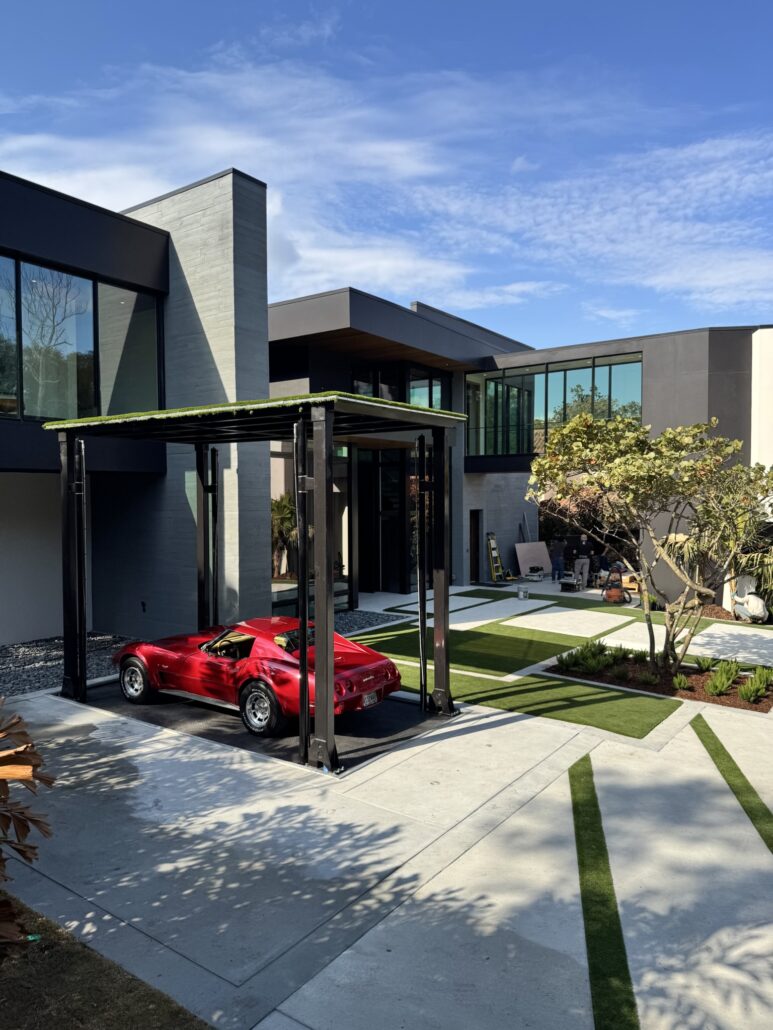

OUTDOOR INSTALLATION & WATER MANAGEMENT
Because the lift is installed outdoors, Florida’s rain posed a significant risk:
• Water passing through the car lift pit gap
• Potential flooding of the underground garage
• Long-term exposure to moisture and corrosion
A conventional installation would not provide adequate protection. A custom drainage system was required.
CAR LIFT - ACCELERATED CONSTRUCTION TIMELINE:
Although the residence was part of a multi-year construction project, lift fabrication and installation had to occur within a compressed one-year build schedule. Engineering, manufacturing, and installation had to align precisely with the builder’s timeline.
THE SOLUTION: ENGINEERED STRUCTURAL & HYDRAULIC PERFORMANCE
Carousel engineers utilized computer load modeling to properly size the structural framework and ensure stability under demanding load conditions.
The system includes:
• 12,000 LB lifting capacity
• Chain leveling system to maintain platform alignment under uneven loads • 7.5 HP Hydraulic Power Unit
• Safety velocity fuses for controlled operation
• 96” per minute travel speed
• Main and auxiliary push-button control stations
The result is smooth, consistent, and powerful vertical travel with commercial-grade durability.
CUSTOM INTEGRATED DRAINAGE SYSTEM

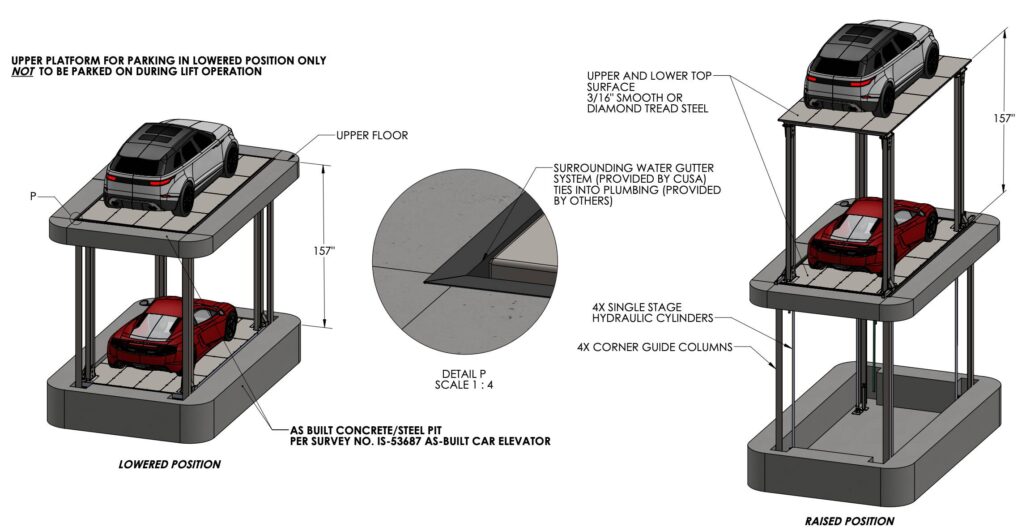

To mitigate water intrusion, Carousel designed and fabricated a perimeter gutter system consisting of:
• A custom-fabricated trough surrounding the car lift pit
• A precision sheet metal top panel integrated with the lift surface
• Controlled diversion of water into a designated drainage system
This solution significantly reduces water entering the pit and protects the underground garage from flooding — a critical feature for outdoor residential installations in wet environments.
STREAMLINED CAR LIFT PRODUCTION & ON-TIME DELIVERY
Carousel met the aggressive build schedule by:
• Streamlining fabrication processes
• Leveraging prior installation experience
• Coordinating closely with the construction team • Eliminating production inefficiencies
The lift was delivered and installed on time, supporting the overall construction schedule without delay.
VEHICLE LIFT DESIGN FEATURES
12,000 LB total lifting capacity

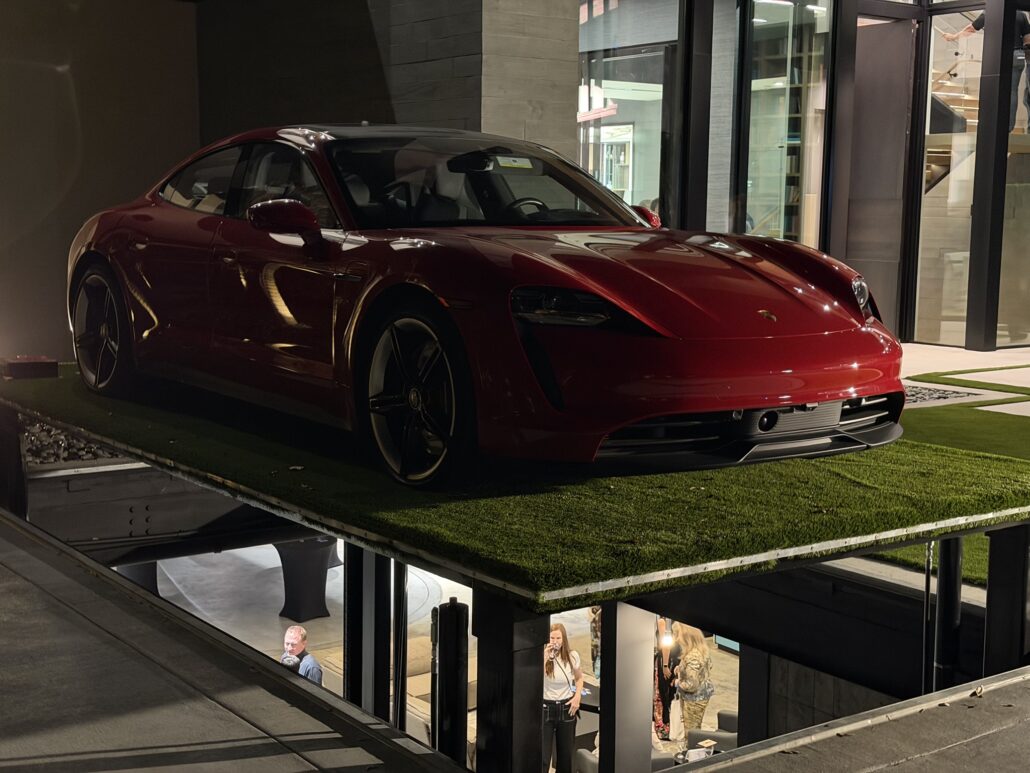

Dual-vehicle functionality (vehicle supported on top canopy platform)
Custom perimeter drainage gutter system
Chain leveling system for balanced lifting
96” per minute travel rate
7.5 HP hydraulic power unit
Safety velocity fuses
Main and auxiliary push-button controls
Commercial-grade components
Designed and built in the USA
PROJECT OUTCOME
The 4PL157 car lift installation at 581 Sylvan Drive demonstrates Carousel-USA’s ability to:
Engineer high-capacity custom lift systems
Solve site-specific environmental challenges
Integrate seamlessly into luxury residential construction
Deliver performance-driven solutions within demanding timelines
This project reflects Carousel USA’s commitment to precision engineering, durability, and American-built quality.
