Surface Mount Turntables

– Not interested in digging a pit for your turntable?

– Thinking about moving the turntable to another location at some point?

– Looking for a QUALITY alternative to other poorly designed surface mounted options?

– Are you after motion control turntable operations?

– Looking to capture 360° Car Photography and Virtual Reality Video?

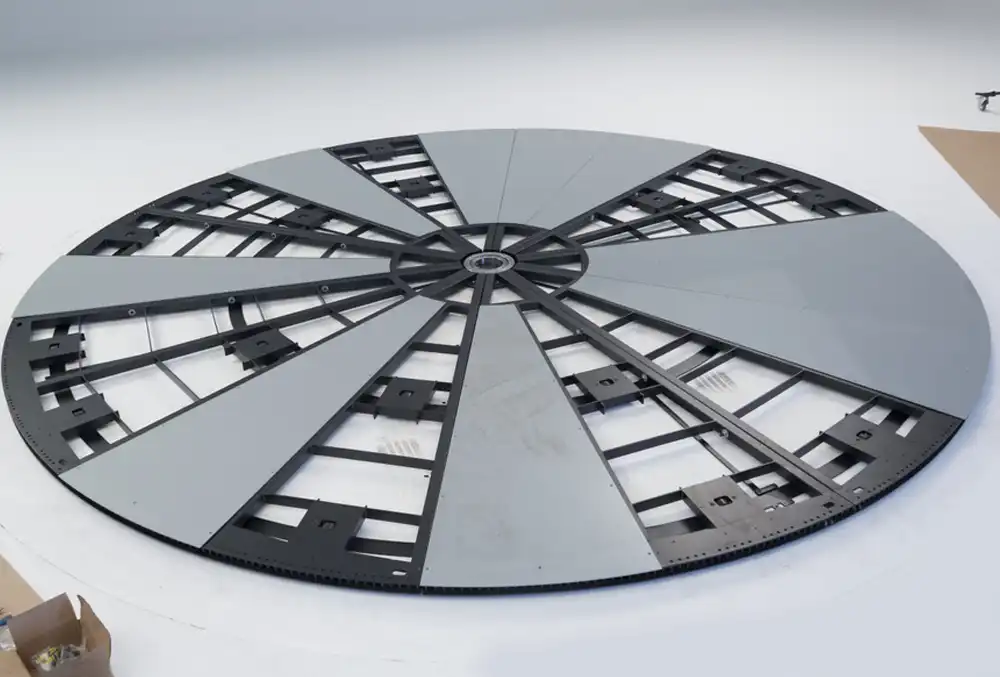

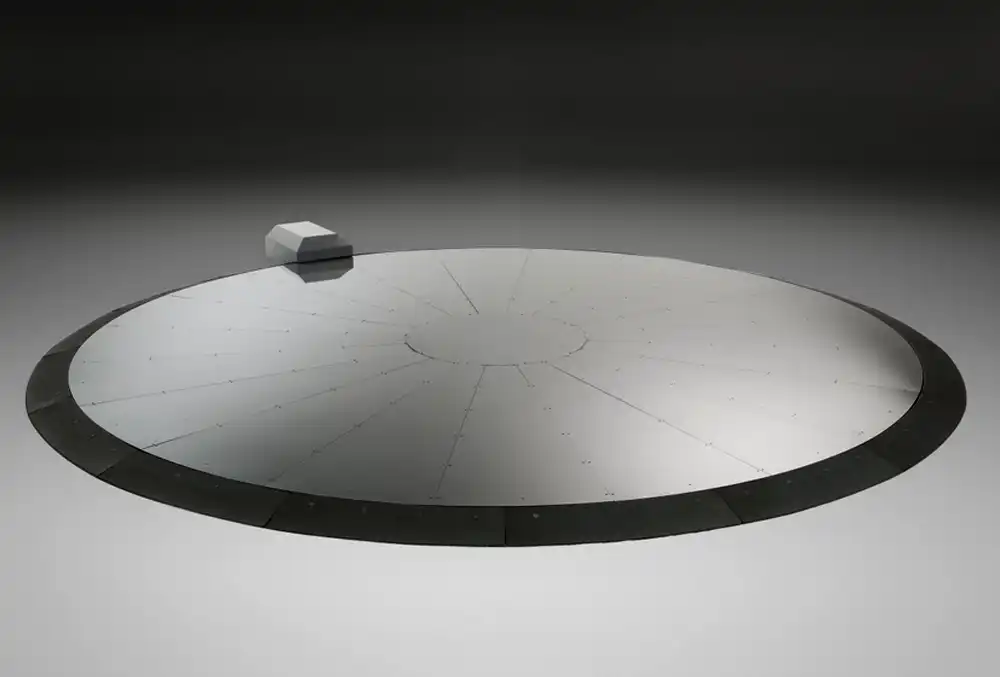

CUSA Model 40SSV

  • Turntable is 3.25” tall and spans 14.875’ in width; diameter of rotating disk is 13’-1.5”
  • Accommodates most passenger vehicles
  • 6,000 lb. load capacity
  • Ramps included
  • Top surface comes powder-coated Flint Grey (Cardinal T243-GR522) or hot-dip galvanized
  • Requires an overall flat surface (0.125” over 10’ span), but not necessarily level surface. (see specifications in technical drawings)
  • Ideal for 360-degree car photography
  • Includes UL 408 Approved Controls and wireless remote; as well as controllable by a smart phone application
  • Single-phase power required: 120 volts, 5 amps
  • Nord Industrial Motor and gearbox
  • Direct, pin-gear drive; no friction or pinch wheels –won’t slip and require adjustments over time
  • 0.10 – 1.0 rpm speed (variable), CW & CCW rotation
  • Built for Self-Install. CUSA Installation is available
  • Built in USA, with quality components, designed for commercial use
  • Can be installed in-ground as well

CLICK HERE FOR PRODUCT SHEET

CLICK HERE FOR PRODUCT DRAWINGS

CUSA Model 55SSV

  • Turntable is 3.25” tall and spans 19’-8.5” in width; diameter of rotating disk is 18’-0.5”
  • Accommodates all passenger vehicles and pick-up trucks
  • 10,000 lb. load capacity
  • Ramps included
  • Powder coated (Cardinal Grey RAL 7042 or White) or hot-dip galvanized TOP surface, and hot-dipped galvanized structure
  • Requires an overall flat surface (0.125” over 10’ span), but not necessarily level surface. (see specifications in technical drawings)
  • Ideal for 360 degree car photography
  • Nord Industrial Motor and gearbox
  • Direct, pin-gear drive; no friction or pinch wheels – won’t slip and require adjustments over time
  • Comes with UL 508 Approved Controls, with wireless remote, and CW/CCW operation
  • Built in USA, with quality components, designed for commercial use
  • Self-install is not recommended, installation is available
  • Motor extender option available for Dually Trucks
  • Can be installed in-ground as well
